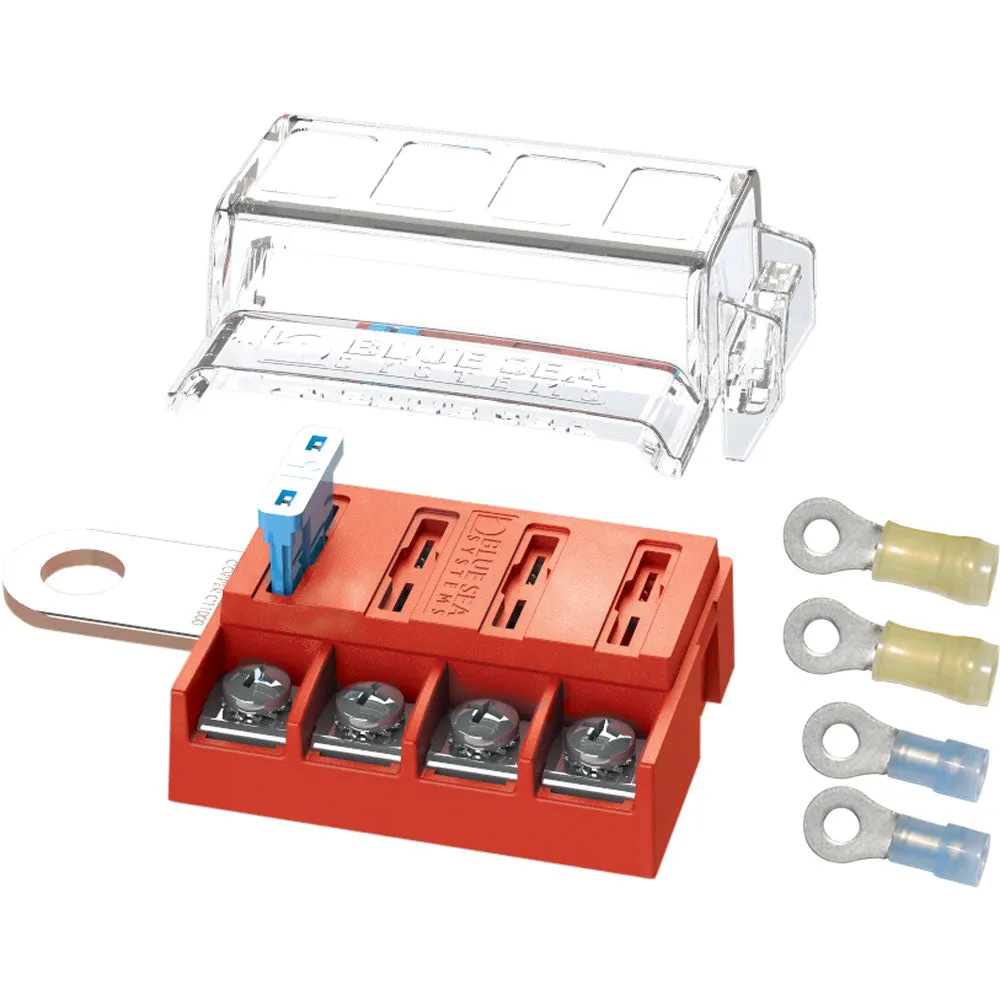

ST-Blade Battery Terminal Mount Fuse Block

Features:

• Easy to install 4 ATO/ATC fused circuits

• Mounts on the battery terminal stud

• Screw terminals for securing wires

• Four Nylon insulated ring terminals included

• Insulating cover included

• Accepts Small Format Circuit Labels

• Includes 1 fuse

• Circuits: 4

• Maximum Amperage: 100A per block, 30A per circuit

• Maximum Voltage: 32V DC

• Mounting:tClearance for 3/8" [M10] stud

• Screw Terminal Type: #8-32 Screws with captive star lock washer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to .

Specifications:

• Fuse Type: ATO/ATC
• Type: Fuse Blocks
• Box Dimensions: 2"H x 5"W x 8"L WT: 0.3 lbs
• UPC: 632085050238
