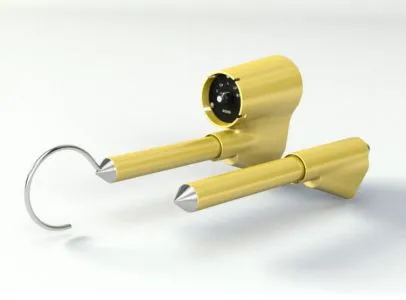

The 83280 is a unique tool in that it may be used as a conventional phasing meter, or the meter probe may be used as a stand-alone voltage detector on primary or secondary voltages or capacitive test points.

The 83280 has the following features:

• Can be used as a Stand-Alone Voltage Detector without the Second Probe
• A Conventional Phasing Meter both Overhead and URD Applications
• Phase Capacitive Test Points

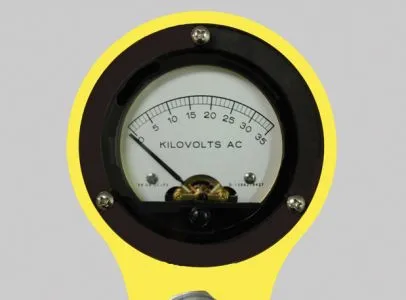

• A Large Easy to Read Analog Meter
• Meter Housing is Completely Shielded to Minimize Stray Field Indications
• An Insulated (35kV) Interconnect Cable with Second Probe
• Each Probe is Impact and Water Resistant
• Meter is Stored in a Highly Durable Padded Carrying Case

The 5-Position Selector Switch Consists of:

• C - Indicates the Voltage on Capacitive Test Points
• CP - Phases Using Capacitive Test Points
• L - Detects Voltage on Overhead and Underground Lines
• LP - Phases on Overhead and URD Primary Systems
• BT - Tests Internal Meter Circuitry by Using Internal Battery Voltage, Meter should Deflect Full Scale

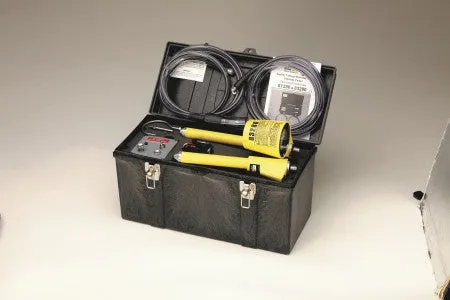

Each 83280 Kit comes standard with a straight probe (81280LPM), hook probe (81280LHM), 8ft. interconnect cable (81280ML), 8ft. extension cable (81280FL), 3kV power supply (PA25T), 6VDC battery (81280B1), instruction manual, padded storage case.
